All In One LED Solar Panel Street Lights Aluminum Alloy Cool White Color

Product Categories
Socreat Electronics Technology Limited
Contact Now

All In One LED Solar Panel Street Lights Aluminum Alloy Cool White Color

  • 1
  • 2

Brand Name : Road Smart

Model Number : SC-NH100

Certification : ISO, SGS, CQC, IP65, CE, RoHS, FCC, wind force, salt-spray, LM-79, IK08, IES

Place of Origin : Shenzhen, China

MOQ : 1set

Price : negotiation

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 50000sets/year

Delivery Time : 5-8 work days

Packaging Details : Color Box Packed, Anti-Shocked Package Material;

Luminous flux : 5000-5600lm

Light output : 40W

LED qty : 60pcs

LED chip : Bridgelux 160lm/w

Color temperature : 3000-6500K

CRI : ≥70Ra

Contact Now

Quick Details

Light Source: LED
Item Type: Street Lights
LED Light Source: Bridgelux
Input Voltage(V): DC12V
Lamp Power(W): 40
Lamp Luminous Flux(lm): 5600
Lamp Luminous Efficiency(lm/w): 160
CRI (Ra>): 70
Color Temperature(CCT): Cool White
Working Temperature(℃): -20 - 65
Working Lifetime(Hour): 50000
Lamp Body Material: Aluminum Alloy
IP Rating: IP65
Certification: CCC, CE, FCC, RoHS
Warranty(Year): 3
Place of Origin: Guangdong, China (Mainland)
Brand Name: Road Smart
Model Number: SC-NH100
Battery Type: LiFePO4 Lithium
Solar panel: Monocrystalline Silicon
Sensor: Microwave Sensor
Life of Battery: >2000 times charge and discharge
Material: Aluminium Alloy
Light distribution: Bat wing with polarized light
Mounting Height: 5-10M
LED qty: 60pcs
Sensor distance: 5-10M
Charge Time: 5.5hrs


2017 new design 100w solar panel Integrated 40W Solar Street Light Led All In One with Motion sensor

Parameter

Item name SC-NH100 Light source


40W

Lumen 5000-5600lm Charging time


5.5hrs
Solar panel 100w/18v Battery


424WH/12.8V (LiFePO4 Lithium)
working time 50000 hours Warranty


3 year
Materila of Lamp Head Aluminium Alloy LED QTY


60pcs
Working time 3-5 days Packing size


1pc /2 carton

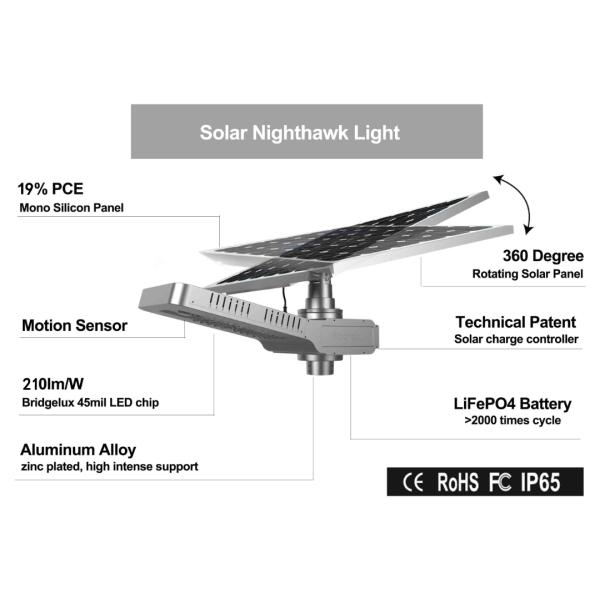

Product advantages

Adjustable solar panel angle in vertical and horizontal direction

Each place has different optimum installation angle to get as much as sunshine

Ensure max efficiency of solar energy conversion=>Set suitable angle towards the sun (equal to local latitude)

High luminous efficiency of customize LED=> efficiency reach 160lm/w-210lm/w

At the same illumination, lower watt of lamp=>lower watt of solar panel, lower capacity of battery=>much lower cost

Solar panel, battery, smart controller and light sources do not connect directly, and wont conduct heat to each other, which support good heat dissipation and long lifetime

The place of battery settled =>note that the battery will be shorten the lifespan or exploded if it’s always in high temperatur

Three color indicators=>easy to see status of each part (solar panel, battery, solar controller) Those three indication lights can monitor the whole system lighting situation, easy to inspect which part defect, save cost on maintenance

You can know what happened from below status of three indicators and know which part has problem, etc

Modular Design:All components are modular design. Components can be easily replaced if any defects which can reduce maintenance cost.

Intelligent Power: Judge the recent climate automatically, to plan the reasonable discharge power, balance the light luminance and discharge time in a perfect way.

Good after sales service=>3 or 5 years warranty.

Provide professional technical guide no matter when you need us.

If something is damaged within the warranty period, the FREE replacements can be offered and easily replaced.

If necessary, we also can send engineer to your location to resolve the problems of project.

All In One LED Solar Panel Street Lights Aluminum Alloy Cool White Color

Packaging Details

Carton box, panel:1005*755*65mm, light body: 725*355*280mm
Net Weight:23Kg
Gross Weight:25Kg
Volume Weight:30Kg

Delivery Time

Shipped in 3 days after payment

FAQ

Q1. How to install the lamp?


A. It can be installed on the pole, also the wall, and package include the screw, nut, and the spannner tools ect. Easy installation in 5 minutes

Q2. How many rainy days it can last?

A: 3-4 Rainy days.

Q3. Can it reach IP65 waterproof grade?

A: Yes, it is certificated by IP65 waterproof.

Q4. What's the differnce between Motion sensor and PIR sensor?

A: Motion sensor also called radar sensor, works by emiting high frequency electric wave, and detect people movement.

PIR sensor works by detecting enviroment temperature changing, usually it's 3- 5 meters sensor distance.
But motion sensor can reach 10meters distance and more sensitive.

Q5. Can the lamp be used in strong wind environment?

A: Of course yes, as we take Aluminum-alloy holder, solid and firm, Zinc plated, anti-rust corrosion.
